Multi Reverse Proxy Architecture on RHEL

NGINX → Traefik → Frappe (VPN-Only, Hostname-Based Routing)

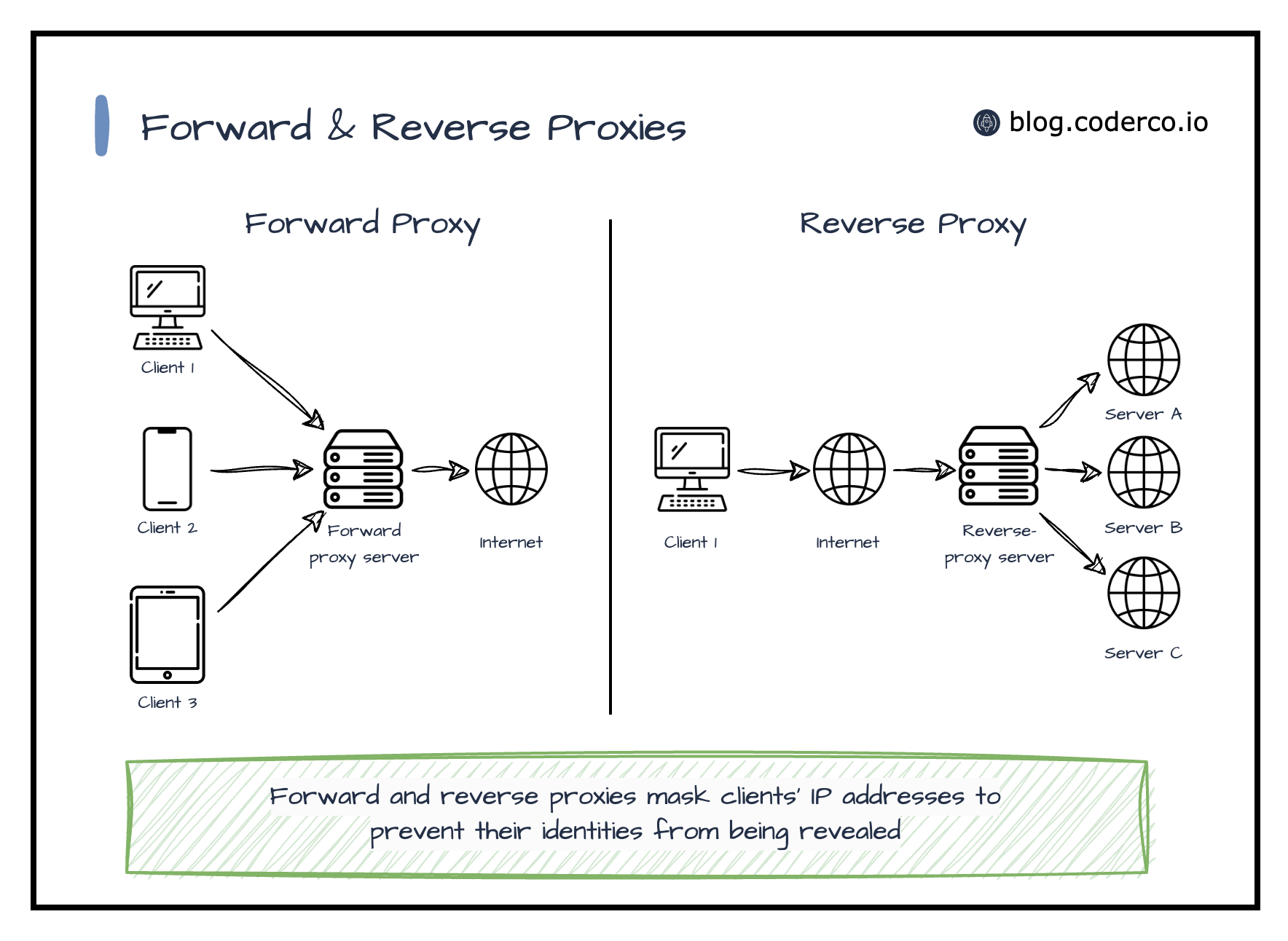

Abstract

In restricted enterprise environments (VPN-only, SELinux enforcing, firewalld enabled), applications are often exposed on non-standard ports such as :8100. While functional, this approach leads to:

• Poor user experience
• Security concerns
• Scalability limitations

This article documents a multi reverse proxy architecture that cleanly exposes applications using hostnames only, without leaking internal ports, while keeping all security controls enabled.

Target Architecture

Client (VPN)
   |
   | http://s1.inxeoz.com
   |
NGINX (host :80)
   |
   | proxy_pass http://127.0.0.1:8100
   v
Traefik (Docker reverse proxy)
   |
   v
Frappe (site routing by Host header)

Components & Roles

• NGINX Front door

  • Listens on port 80
  • Routes by hostname

• Traefik Service router

  • Runs in Docker
  • Routes to correct container

• Frappe / ERPNext Application router

  • Selects site based on HTTP Host header

🔑 PRE-CONDITIONS (MANDATORY)

Do NOT proceed unless all of the following are true.

1️⃣ VPN Connectivity Works

From the client machine:

ping <SERVER_IP>

Expected:

• Replies received
• No packet loss

2️⃣ Hostname Resolution Exists (Client-Side or Internal DNS)

From VPN client:

ping s1.inxeoz.com
ping s2.inxeoz.com

Expected:

PING s1.inxeoz.com (<SERVER_IP>)

If DNS is not available, /etc/hosts (or Windows hosts file) must already contain:

<SERVER_IP>   s1.inxeoz.com
<SERVER_IP>   s2.inxeoz.com

⚠️ DNS/hosts must be correct before touching NGINX

3️⃣ Traefik ALREADY Works by Host Header

From the server:

curl -H "Host: s1.inxeoz.com" http://127.0.0.1:8100

Expected:

• HTTP/1.1 200 OK
• Frappe HTML output

❌ If this fails → STOP Traefik/Frappe must be fixed first.

4️⃣ Frappe Sites Already Exist

Frappe must already have sites created:

bench --site s1.inxeoz.com list-apps
bench --site s2.inxeoz.com list-apps

If the site does not exist, hostname routing will never work.

5️⃣ NGINX Is Running on Port 80

On the server:

ss -tulnp | grep ':80 '

Expected:

users:(("nginx",pid=...))

❌ If Apache/httpd owns port 80 → stop and reassess.

Data Flow Diagram (DFD – Level 1)

Flow Explanation:

1. VPN client requests http://s1.inxeoz.com
2. Hostname resolves to server IP
3. Request hits NGINX on port 80
4. NGINX proxies to Traefik on 127.0.0.1:8100
5. Traefik forwards to Frappe container
6. Frappe selects site via Host header
7. Response flows back upstream

Implementation Steps (Safe & Ordered)

🔒 Step 1: Backup NGINX Configuration

cp -a /etc/nginx /root/nginx-backup-$(date +%F-%H%M)

Rollback is guaranteed.

✏️ Step 2: Add NGINX Server Block

Create a new file only:

vim /etc/nginx/conf.d/inxeoz-frappe.conf

server {
    listen 80;
    server_name s1.inxeoz.com s2.inxeoz.com;

    location / {
        proxy_pass http://127.0.0.1:8100;

        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        proxy_http_version 1.1;
        proxy_set_header Connection "";
    }
}

🔍 Step 3: Validate Configuration

nginx -t

Expected:

syntax is ok
test is successful

❌ Any error → STOP

🔄 Step 4: Reload NGINX (NO RESTART)

systemctl reload nginx

SELinux REQUIREMENT (RHEL-Specific)

On RHEL / Rocky / Alma:

getenforce

Expected:

Enforcing

Enable outbound proxy connections without disabling SELinux:

setsebool -P httpd_can_network_connect on

Firewall REQUIREMENT

Confirm port 80 is allowed:

firewall-cmd --list-ports | grep 80

If missing:

firewall-cmd --add-port=80/tcp
firewall-cmd --add-port=80/tcp --permanent
firewall-cmd --reload

Verification Checklist (CRITICAL)

✅ Server-Side Tests

curl -H "Host: s1.inxeoz.com" http://127.0.0.1

Expected:

• 200 OK
• Frappe HTML

✅ Client-Side Tests (VPN)

Browser or CLI:

http://s1.inxeoz.com
http://s2.inxeoz.com

Expected:

• No port in URL
• Correct Frappe site loads

Common Failure Modes & Help Commands

❌ 502 Bad Gateway

Check SELinux:

getenforce
setsebool -P httpd_can_network_connect on

Check logs:

journalctl -u nginx --no-pager | tail

❌ Works on server but not client

Check firewall:

firewall-cmd --list-ports

Check VPN routing:

ping <SERVER_IP>

❌ Traefik works on :8100 but not via NGINX

Confirm backend reachability:

curl http://127.0.0.1:8100

Confirm Host header:

curl -H "Host: s1.inxeoz.com" http://127.0.0.1:8100

Security Posture (Final State)

Final Mental Model (Remember This)

NGINX decides WHERE Traefik decides WHICH service Frappe decides WHICH site

Each layer does one job only.

Conclusion

A multi reverse proxy is not complexity — it is correct separation of concerns.

This design:

• Removes port exposure
• Preserves security controls
• Scales cleanly to many subdomains
• Works fully inside VPN-only environments
